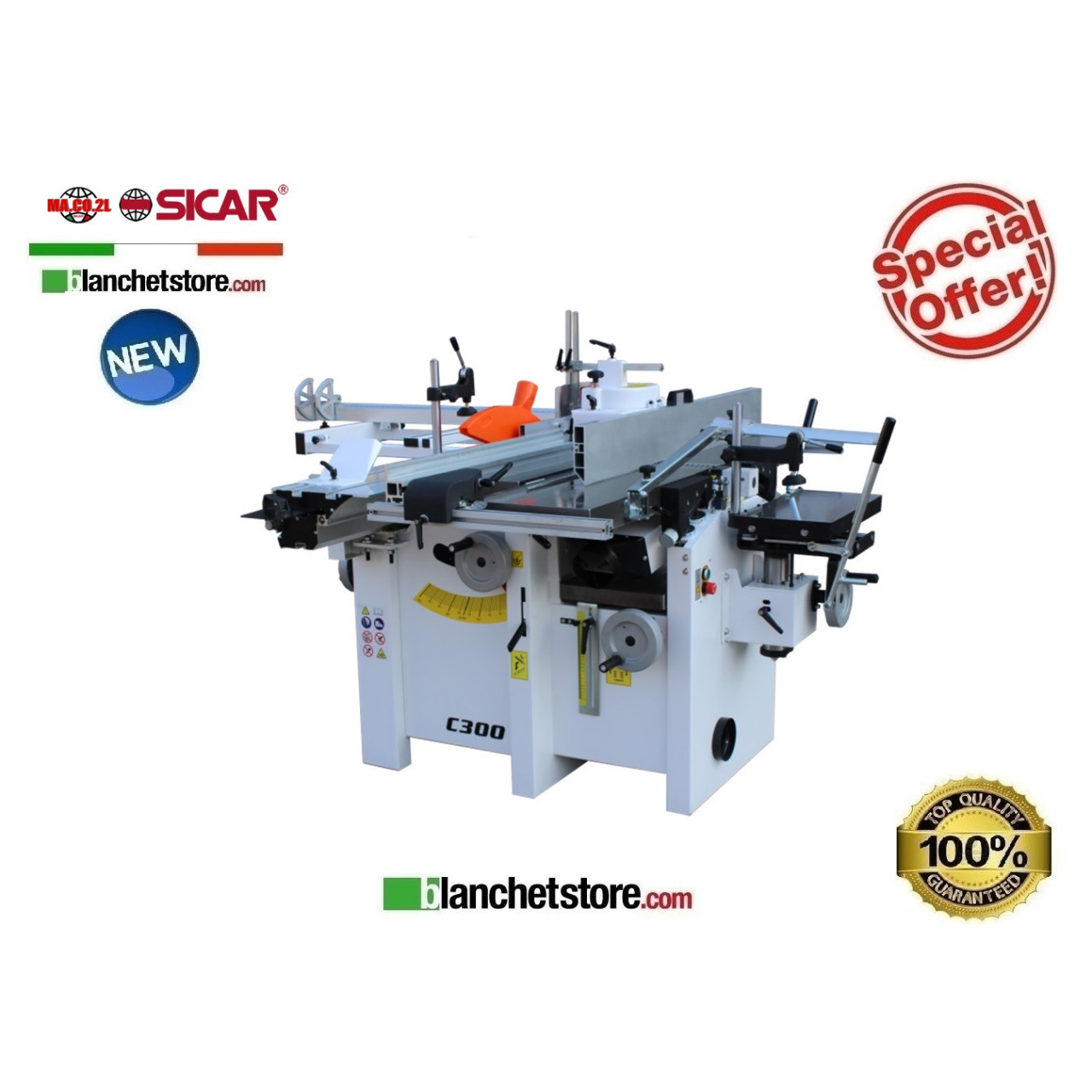

Combinata 5 lavorazioni
MACO2L
Mod. C300

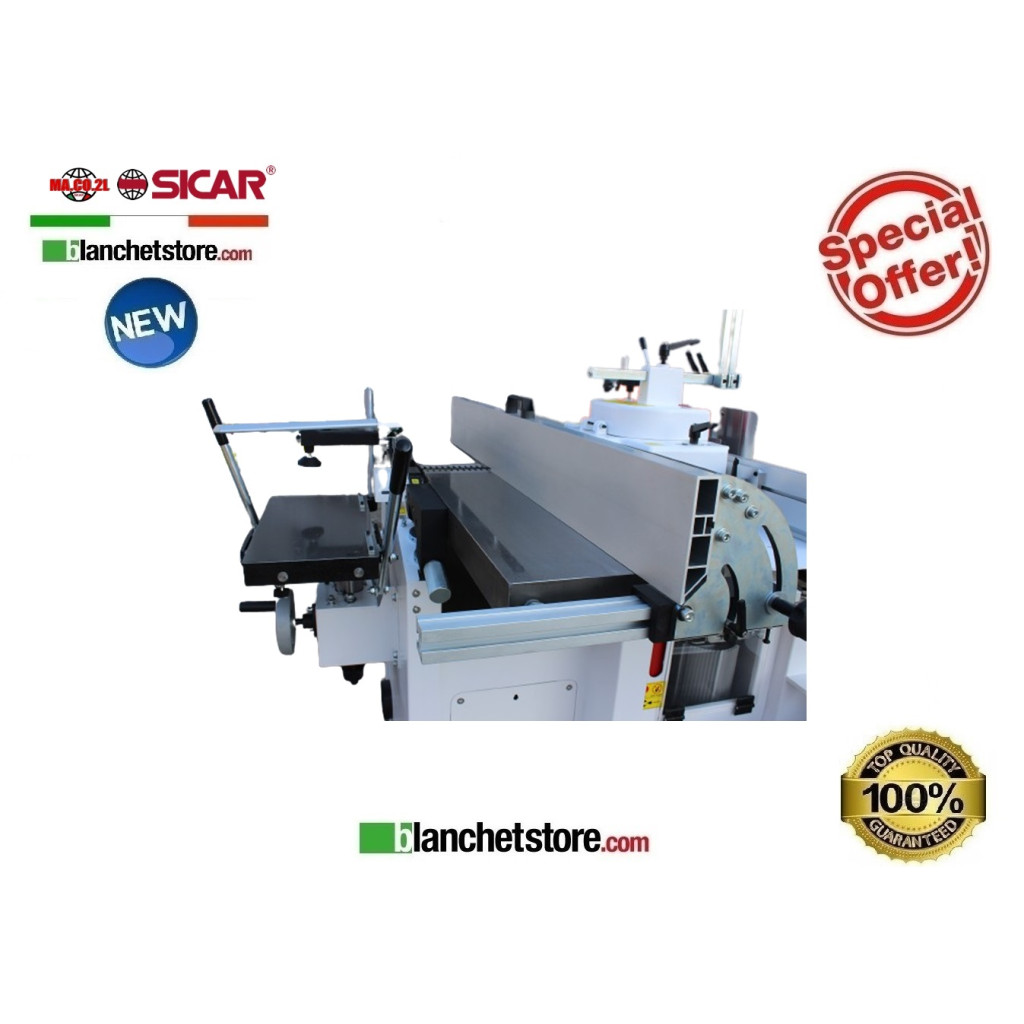

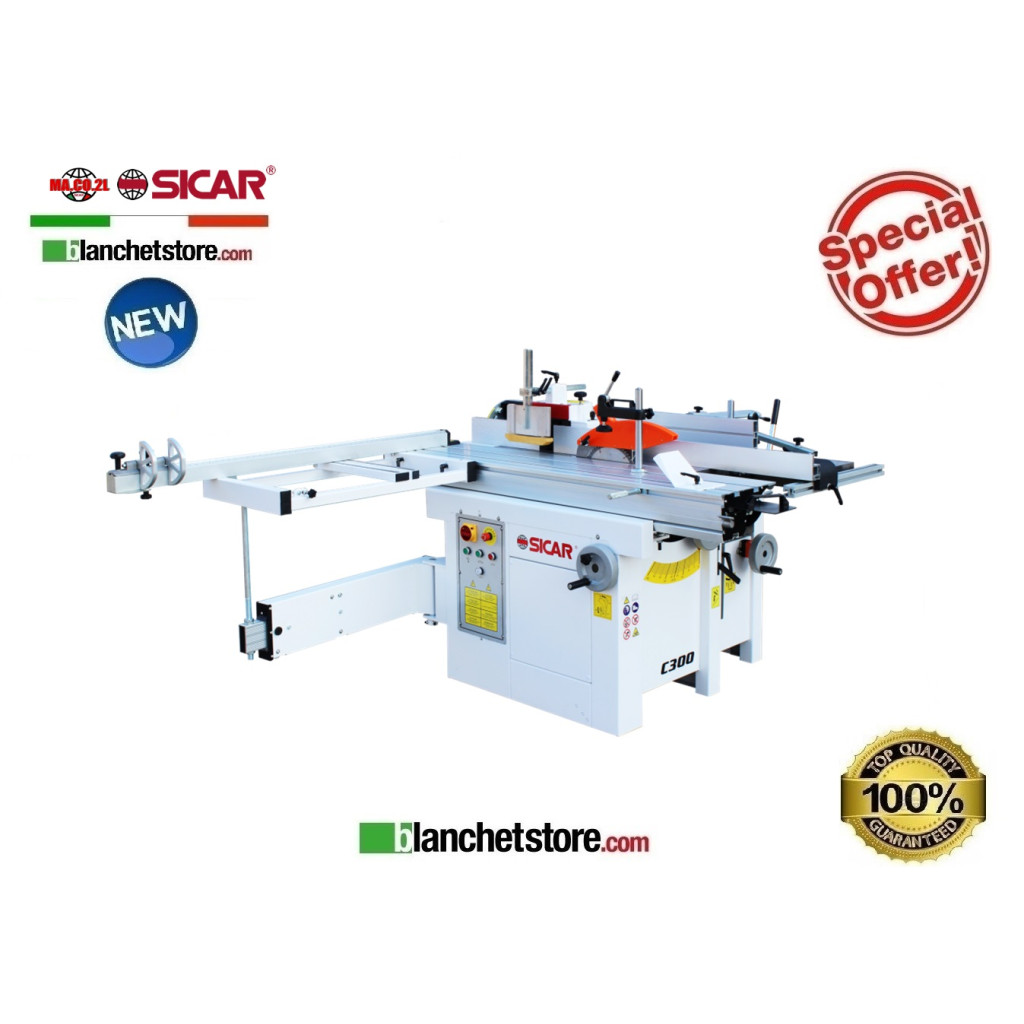

Macchina per legno a 5 lavorazioni con 3 motori indipendenti, pialla larga 300 mm, toupie verticale d.30 , sega circolare da 205 mm e carro a squadrare su vangone da 1600 mm
COD: C300
DESCRIZIONE
Piano di lavoro | mm | 300×1500 |
Diam. albero porta-coltelli | mm | 70 |
Velocità rotazione albero | g/m | 5700 |
Numero dei coltelli | n° | 3 |
Dimensioni coltelli | mm | 300x20x3 |
Registr. max piani | mm | 4 |
PIALLA SPESSORE | ||
Piano di lavoro | mm | 300×660 |
Spessore max passata | mm | 5.5 |
Velocità avanzamento | m/min | 7 |
Passaggio legno max | mm | 220 |
Passaggio legno min. | mm | 4 |
Rotazione albero | g/min | 5700 |
SEGA CIRCOLARE | ||
Piano di lavoro | mm | 220×1000 |
Velocità di rotazione | g/mm | 4500 |
Lama | Ǿ | 250 |
Foro lama | Ǿ | 30 |
Altezza max taglio 90° | mm | 80 |
Altezza max taglio 45° | mm | 50 |
Lama inclinabile | 0° | 45° |
Pass. max fra lama e guida | mm | 560 |
Incisore | Ǿ | 90 |
Foro incisore | Ǿ | 22 |
Velocità di rotazione | g/min | 7000 |
CAVATRICE | ||
Piano di lavoro | mm | 500×250 |
Corsa longitudinale | mm | 205 |
Corsa trasversale | mm | 95 |
Corsa verticale | mm | 90 |
Mandrino | Ǿ | 16 |
Rotazione mandrino | g/min | 5700 |

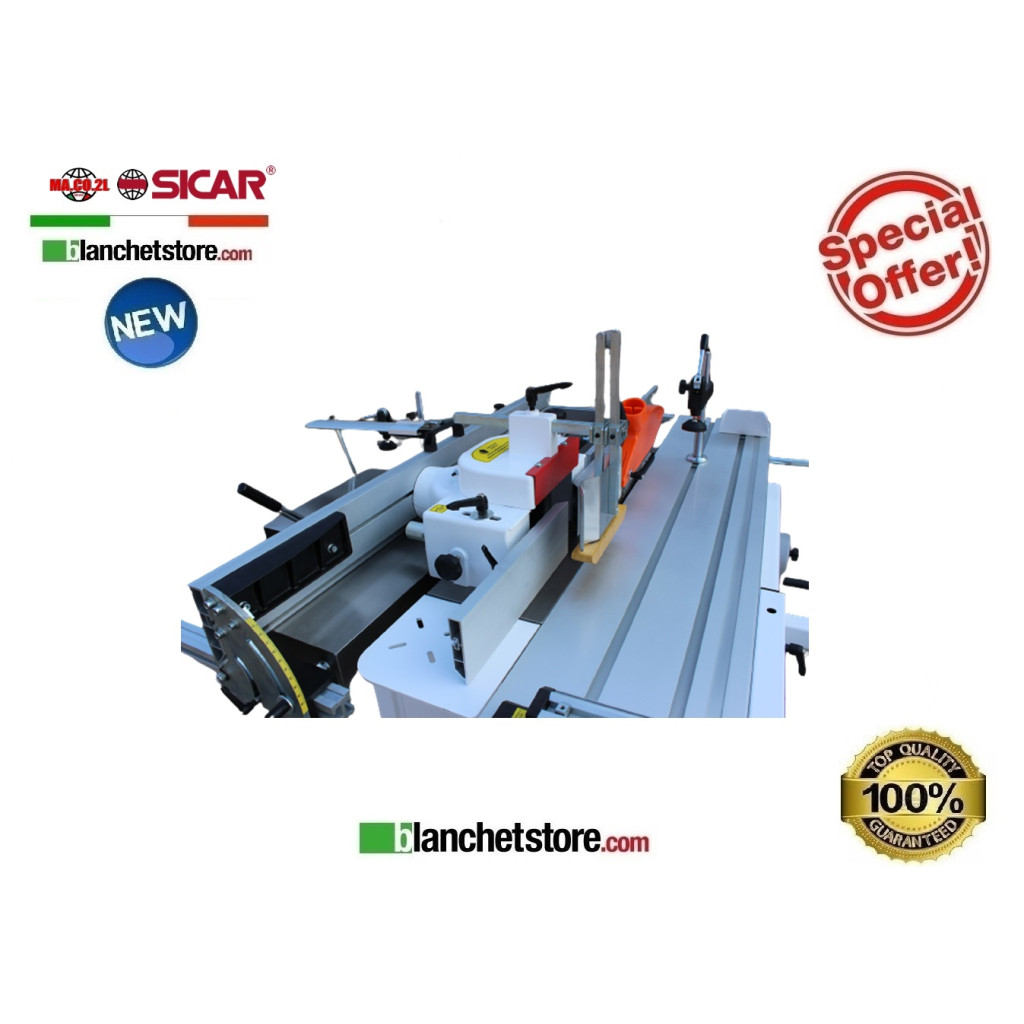

FRESATRICE VERTICALE | ||
Piano di lavoro | mm | 220×1000 |
Velocità rotazione | g/min | 2000/3100/4400/ 7000 |
Diametro albero standard | mm | 30/35/50 |
Lunghezza albero | mm | 105 |
Corsa verticale albero | mm | 115 |
Diam max utensile | mm | 160 |
Profondità max tenoni | mm | 55 |
DOTAZIONE STANDARD | ||
Controtelaio, supporto a bandiera | mm | 800×600 |
Potenza motore trifase | KW/HP | 2,2/3,0 |
Peso | kg | 560 |
ACCESSORI A RICHIESTA | ||
Motore monofase | KW/HP | 4.0/3,0 |
Carro scorrevole | mm | 2200×315 |
